Big Wideband Indoor Ceiling Antenna Vertical 698-3800 Mhz 6dBi 4G LTE

Brand Name : ZD

Model Number : ZD-MCA-738-4/5NF

Certification : RoHS

Place of Origin : CHINA

MOQ : Negotiable

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 10000pcs per month

Delivery Time : 3~4 weeks

Packaging Details : Standard Packing

Name : Indoor Ceiling Antenna

Frequency range : 698~3800

Polarization type : Vertical

VSWR : ≤1.8

Gain (dBi) : 4±1

Isolation(dB) : >20

Contact Now

Big Wideband antenna 698-960mhz 1710 - 3800 MHz 6dBi Indoor 4G LTE WiFi Omni Directional Ceiling MIMO Antenna

To meet huge market demands, we are involved in presenting a wide assortment of Mimo Antennas, which are manufactured using high grade raw material sourced from certified and reputed vendors of the market. The products offered by our company are available in market at reasonable prices. MimoAntennas is widely uses in various industrial applications.

Item Name	Specification
Frequency range (MHz)	698~960	1710~3800
Polarization type	Vertical	Vertical
VSWR	≤1.8	≤1.8
Gain (dBi)	4±1	5±1
Isolation(dB)	>20	>20
Horizontal Beamwidth (°)	360	360
Vertical Beamwidth (°)	85	50
Input impendence (Ω)	50Ω
Intermodulation (dBc)(2*33dBm)	-153
Max power (W)	50
Connector type	2*N/N-female
Weight (g)	380
Dimension (mm)	Φ208×55
Radome material	Uv-Protected ABS
Antenna’s color	White
Environment Temperature (℃)	Limit Temperature: -55~+70 Working Temperature: -40~+60

Big Wideband Indoor Ceiling Antenna Vertical 698-3800 Mhz 6dBi 4G LTE

Our Advantages:

1. We have our own R&D team and have 17 R&D engineers,with independent R&D lab,can quickly provide upmarket product customerization services for customers.
2. We have 6 passive components production lines,150 employees,adopt advanced automatic screw machine,production capacity can up to 5000PCS/ per day.
3. Owning full set of available testing equipment to guarantee the quality of products.
4. Adopt advanced ATE testing system,owning full frequency of Intermodulation test equipment,perfect ERP management system and blameless process quality control system to promise the high qualification rate.
5. Our factory have more than 8 years production experience on antenna and passive components,have a rich product category and high cost-effective,is the leader in antenna and the passive communications industry in China.

Product Tags:

indoor antenna amplifier

indoor antenna signal amplifier

Buy cheap Big Wideband Indoor Ceiling Antenna Vertical 698-3800 Mhz 6dBi 4G LTE product

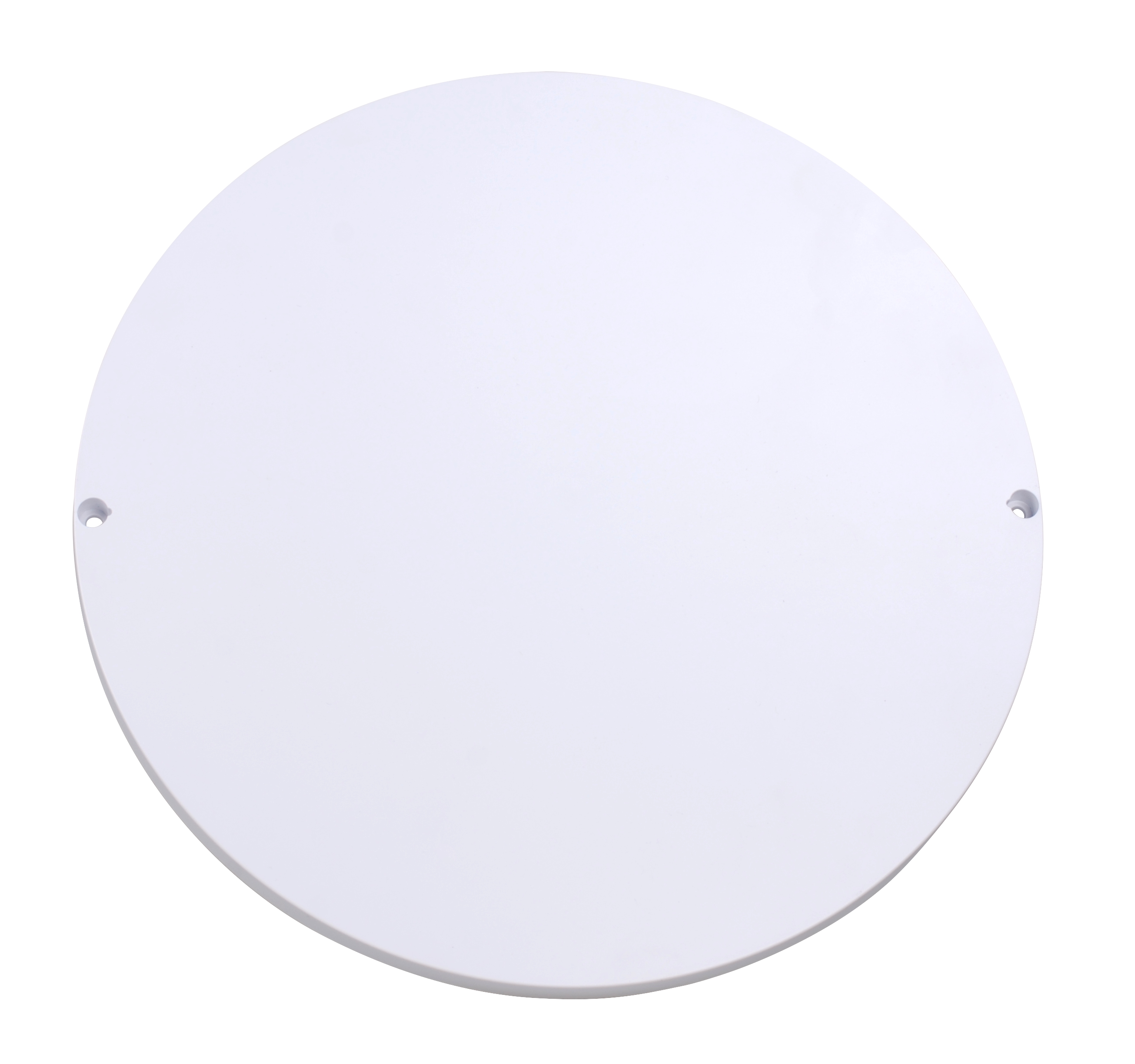

Big Wideband Indoor Ceiling Antenna Vertical 698-3800 Mhz 6dBi 4G LTE Images
