Hybrid Coupler 2in 2out IBS Components 2:1 hybrid coupler

Product Categories

SHENZHEN ZD TECH CO., LTD

Contact Now

Brand Name : ZD

Model Number : ZD-HC-827-200-2:2-NF

Certification : RoHS

Place of Origin : China

MOQ : Negotiable

Price : Negotiable

Payment Terms : D/A, D/P, T/T, Western Union, MoneyGram, L/C

Supply Ability : 10000pcs one month

Delivery Time : 3-15 days

Packaging Details : Standard exporting cartons or as customer required

Material: Cavity : Aluminum silver-plated

Temperature : -25 to +70℃

VSWR : <1.3

PIM3 : ≤-150dBc @+43dBm×2

Connector Type : N-Female

Frequency Range : 700 - 2700MHz

Contact Now

Hybrid Coupler 2in 2out IBS Components 2:1 hybrid couple

Hybrid Coupler 2in 2out

Model: ZD-HC-827-200-2:2-NF

Features:

Specifications:

Frequency Range	700 - 2700MHz
Distribution Loss	≤3.5dB (Including Distribution Loss and Fluctuation)
Isolation	≥20dB
Return Loss	≥20dB, (VSWR<1.25)
Insertion Loss	≤ 0,55 dB
Impedance	50Ω
PIM (IMD3)	≤-150dBc @+43dBm×2
Connectors	N-Female
Power Handling	100W / Input port, (Total power 200W)
Temperature	-25 to +70℃
Environmental Humidity	0 to 95%
Environmental rating	Indoor (IP52)
Material	Cavity aluminum silver-plated; Connector: Copper
Size	142×40×22mm
Weight	≥0.37Kg

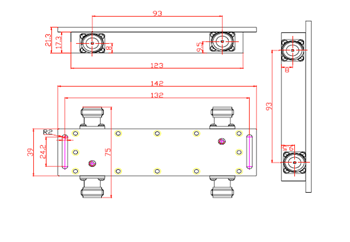

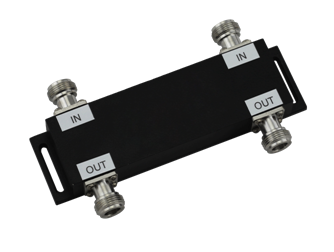

Outline Drawing & Product Image:

Product Tags:

high power directional coupler
