Lower Insertion Loss Hybrid Coupler Combiner With 4.3 - 10 Connectors Through Hole

Brand Name : ZD

Model Number : ZD-DC-738-200-2/2NF

Certification : RoHS

Place of Origin : China

MOQ : Negotiable

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100000pcs

Delivery Time : 5-8 days

Frequency range(MHz) : 698~960,1427~3800

Insertion Loss (dB) : ≤3.9

Isolation(dB) : ≥20

Power Handling(W) : 200,Avg;1000,Peak

Connectors type : 4.3-10,Female

Mounting : Through Hole

Contact Now

5G IBS Components 690-3800MHz Hybrid Coupler with 4.3-10 Connectors

Highlights

• Integrated structure design: Filter is milled from one solid piece and has no soldered parts, guaranteeing superior

electrical performance and reliability.
•  Lower PIM, lower insertion loss, higher isolation, and higher power handing capacity.
•  IP65 protection ensures stable performance in any environment.
•  Compact design, easy installation.
•  Lifetime warranty.

1.Specifications:

1.1 Electrical Characteristics

Frequency range(MHz)	698~960,1427~3800
Insertion Loss (dB)	≤3.9
VSWR	≤1.25
Isolation(dB)	≥20
Passive Intermodulation(3rd order)	≥155dBc@43dBm×2
Impedance(Ω)	50
Power Handling(W)	200,Avg;1000,Peak

1.2 Environmental Characteristics

Operating Temperature(℃)	-40-+75
Relative Humidity	5%-95%
Ingress Protection	Ip65

1.3 Mechanical Characteristics

Connectors type	4.3-10,Female
Mounting	Through Hole

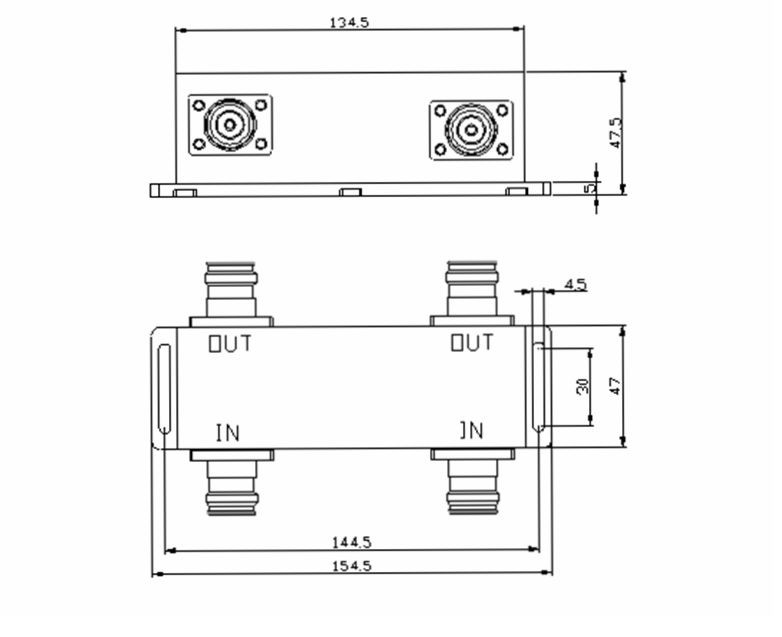

Dimensions(mm)	154.5×47×47.5(excluding connectors)

Lower Insertion Loss Hybrid Coupler Combiner With 4.3 - 10 Connectors Through Hole
