698-2700mhz Grey Square N Female 3 Way RF Power Divider Splitter

Name: 6982700mhz Grey Square N Female 3 Way RF Power Divider Splitter
Brand: ZD-PSFG-827-200-03NF
Price: 1 USD

Buy cheap 698-2700mhz Grey Square N Female 3 Way RF Power Divider Splitter product

Brand Name : ZD-PSFG-827-200-03NF

Model Number : ZD

Certification : RoHS

Place of Origin : china

MOQ : Negotiable

Price : Negotiable

Payment Terms : D/A, D/P, L/C, T/T, Western Union, MoneyGram

Supply Ability : 100000pcs per month

Frequency : 698-2700mhz

Application : indoor or outdoor

Average Power(W) : 200/300/500

PIM3 : ≤-120/-140/-150@2X43dBm

Impedance : 50 Ohm

Connector : N-Female

color : grey or customerized

shape : round or square

Contact Now

698-2700mhz Grey Square N Female 3 Way RF Power Divider Splitter

Power splitters (also power splitters and, when used in reverse, power combiners) are passive devices used in the field of radio technology. They couple a defined amount of the electromagnetic power in a transmission line to a port enabling the signal to be used in another circuit.Power dividers are used in a wide variety of applications and can satisfy almost any requirement where a signal needs to be distributed or combined.HTmicrowave offers 2-way,3-way and 4-way configurations fitted with N,7/16 DIN-Female or SMA-Femal connectors at all ports.Indoor or Outdoor use.This RF Splitter Series provide a low loss,same power split at all output ports while maintaining excellent amplitude and phase balance.Mainly used in repeater or base station to split,also can be used in indoor distribution system.Features of our products are high isolation,alternate connector configurations,rack mounting,high power combining and weatherproofing.You can choose the best product solutions for your specific needs here.

Electrical Specifications:
Frequency Range	800-2500MHz			800-2700MHz			698-2700MHz
Split Way	2way	3way	4way	2way	3way	4way	2way	3way	4way
VSWR	≤1.25:1			≤1.25:1			≤1.25:1
Insertion Loss(dB)	≤3.3	≤5.2	≤6.3	≤3.3	≤5.2	≤6.4	≤3.3	≤5.2	≤6.5
In-band Ripple(dB)	≤0.3	≤0.4	≤0.5	≤0.3	≤0.4	≤0.5	≤0.3	≤0.4	≤0.5
Average Power(W)	200/300/500			200/300/500			200/300/500
3rd Order IMD(dBc)	≤-120/-140/-150@2X43dBm			≤-120/-140/-150@2X43dBm			≤-120/-140/-150@2X43dBm
Impedance(Ω)	50			50			50
Connectors Type	N-Female			N-Female			N-Female
Operating Temp.(℃)	-20~+55			-20~+55			-20~+55
Application	For Indoor or Outdoor Use			For Indoor or Outdoor Use			For Indoor or Outdoor Use
Finish	Grey Plated			Grey Plated			Grey Plated

Product Tags:

mobile network amplifier

cell phone signal range extender

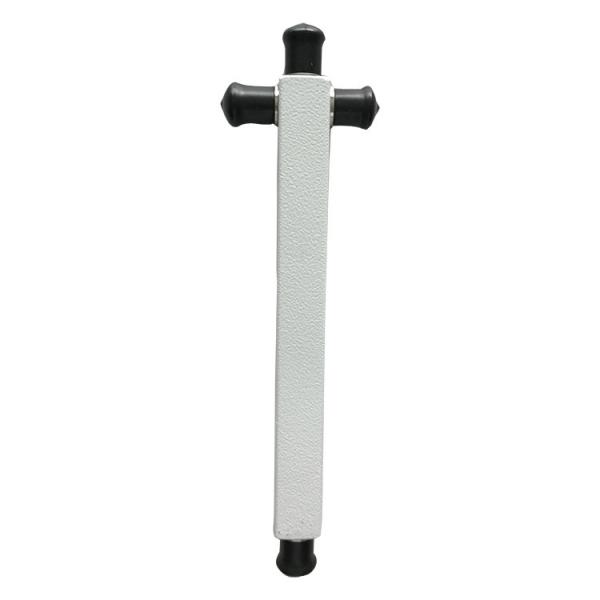

698-2700mhz Grey Square N Female 3 Way RF Power Divider Splitter Images
